Flexiv Rizon 4S

Flexiv Rizon 4S#

FlexivRizon4SCfg integrates Flexiv’s seven-axis Rizon 4S arm with its bare flange, original meshes and materials. The catalog ID is FlexivRizon4S. The preset has one arm control part, containing joint1 through joint7; it does not attach a gripper or declare an eef control part.

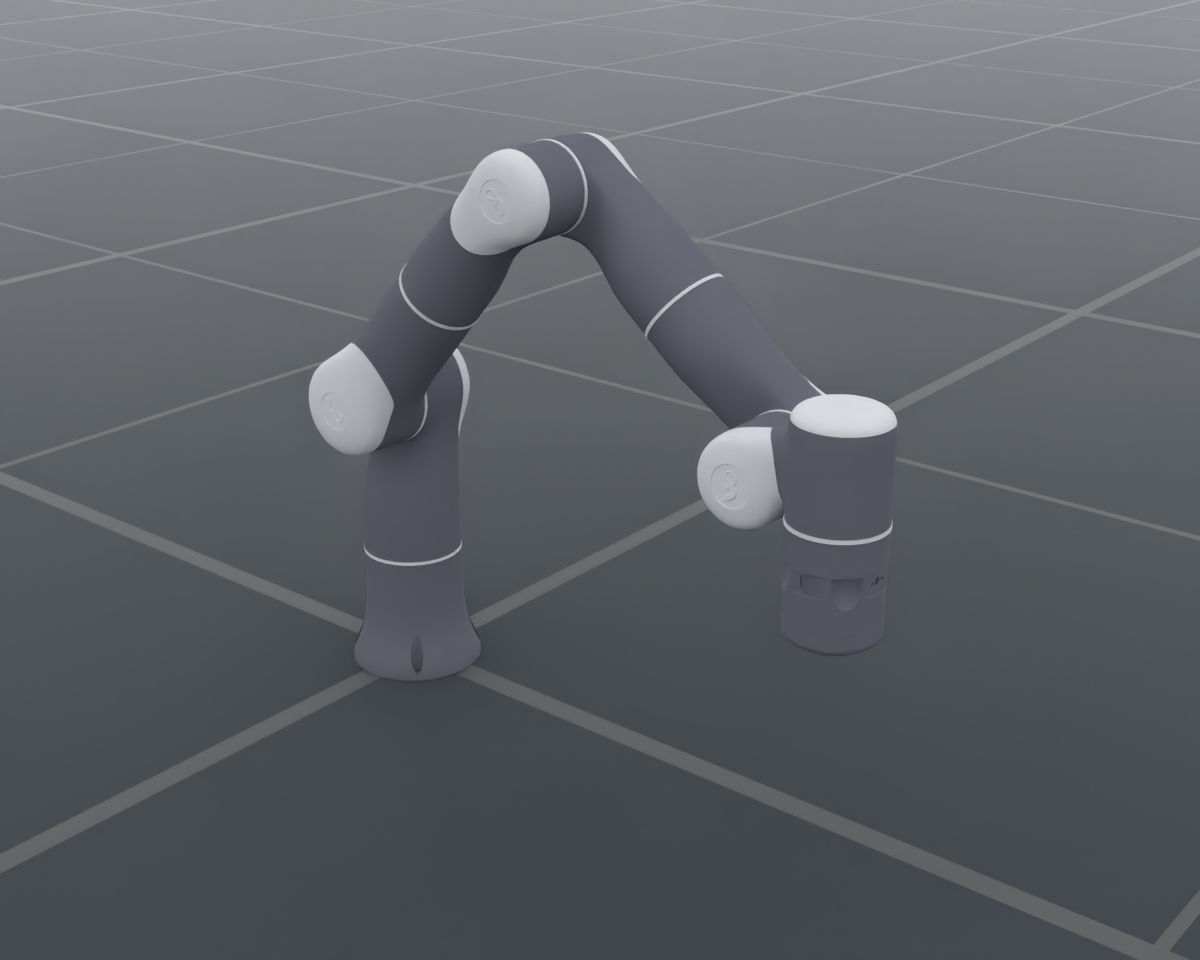

Flexiv Rizon 4S in its official ready pose

The image uses the catalog defaults and native OfflineRT with the same default lighting/render settings as the other robot resource pages. Camera and renderer settings are recorded in the render manifest.

Usage#

from embodichain.lab.sim import SimulationManager, SimulationManagerCfg
from embodichain_robots import FlexivRizon4SCfg

sim = SimulationManager(SimulationManagerCfg(headless=True))
try:
    cfg = FlexivRizon4SCfg.from_dict({})
    robot = sim.add_robot(cfg=cfg)
    sim.prepare()
    sim.update(step=1)
finally:
    sim.destroy(exit_process=False)
SimulationManager.flush_cleanup_queue()

The shared catalog also accepts resolve_robot_cfg("FlexivRizon4S"), or class_type: FlexivRizon4S in a robot configuration mapping. Discover and preview it with:

embodichain list-robot
embodichain data list --category robot
embodichain data download --name FlexivRizon4S
embodichain preview-robot --robot FlexivRizon4S --renderer rt
embodichain preview-robot --robot FlexivRizon4S --headless --renderer no-render --max-steps 300

Assets and kinematic frames#

The approximately 0.8 MB Apache-2.0 asset archive is hosted in the EmbodiChain Hugging Face dataset. get_data_path("FlexivRizon4S/rizon4s.urdf") uses the standard FlexivRizon4S data wrapper to download, checksum and extract it under the shared dataset lock into the revision-specific FlexivRizon4S_v1 cache. The configured EMBODICHAIN_DOWNLOAD_PREFIX is tried first, with the official Hugging Face dataset as a fallback. A network connection is needed for the initial download; subsequent loads reuse the cache. ROS and Xacro processing are not required. Catalog listing does not construct the robot or download its assets.

The archive contains the expanded URDF, visual/collision meshes and MTLs, original parameter/Xacro files, the drive-reference USD layers, LICENSE, NOTICE and a SHA256 provenance manifest. Expansion changes only mesh paths to relative paths; joint/link names, transforms and numerical inertial values remain those of the pinned official description. A derived triangular copy of the visual joint-ring mesh supports native ray tracing, which skips the source mesh’s polygon faces. The original OBJ remains in the archive; vertex positions, UVs, material assignments and collision meshes are unchanged.

Both simulation and build_pk_serial_chain() use the same selected URDF. An explicit URDF fpath override replaces that source for both consumers. The chain and the default PytorchSolverCfg run from base_link to flange. The TCP is identity, so FK returns the bare flange pose. IK targets that same frame. The general numerical solver accommodates this arm’s offset joint geometry without assuming Franka or spherical-wrist dimensions.

The initial joint positions are the official ready pose, in source order: [0, -0.69813, 0, 1.570796, 0, 0.69813, 0] radians.

Published dynamics and simulation drives#

Link masses, centers of mass, complete inertia tensors, position limits and speed limits are preserved from the official URDF. No automatic mass scaling or inertia recomputation is applied. For example, the base mass is 3.788 kg, link 1 is 3.596 kg and link 7 is 1.403 kg in that public model.

These are public simulation parameters. Flexiv’s RDK documentation states that public URDF dynamics parameters are blurred. Precise robot dynamics require the flexiv::rdk::Model API on a connected robot. Likewise, the published Isaac Sim drive gains below do not specify the real controller’s factory gains.

The preset uses the force-drive stiffness and armature from Flexiv’s official Isaac Sim asset. USD angular stiffness/damping are per degree; multiplying by 180/pi gives the per-radian values consumed by EmbodiChain. Armature remains in kg·m². The official damping reference is 80 / 70 / 15 N·m·s/rad for joints 1–2 / 3–4 / 5–7. The preset multiplies that damping by three to suppress repeated rebound during reachable native IK dragging on the Default backend. This damping adjustment is simulation tuning, not a manufacturer controller gain.

Joints

Stiffness (N·m/rad)

Damping (N·m·s/rad)

Effort limit (N·m)

Armature (kg·m²)

Speed limit (rad/s)

1–2

4000

240

123

3.169792

2.0944

3–4

5000

210

64

1.375488

2.4435

5–7

1500

45

39

0.134325

4.8869

The regression exercises a reachable 8 cm Cartesian arc over 250 ms with the native DexSim IK solver and a 10 ms physics step. Increased damping reduces rebound with some additional tracking lag; it does not resolve IK solution jumps at joint limits or unreachable targets.

Passive joint friction is zero as authored in the official simulation asset. The fixed base, disabled self-collision and Default-backend root iteration counts (32 position, 16 velocity) also follow that asset. Newton ignores the root iteration counts; enforcement of drive/limit fields depends on its selected solver, as described by JointDrivePropertiesCfg.

As with other robot configurations, joint_drive_props, root_props, attrs and per-link link_attrs can override these simulation defaults. For example, tune the shoulder drive without replacing its torque limits:

cfg = FlexivRizon4SCfg.from_dict(
    {"joint_drive_props": {"stiffness": {"joint[1-2]": 3000.0}}}
)

Pinned sources#

  • Flexiv description, jazzy-v3.1: config/Rizon4s, meshes/Rizon4s, and the official Xacro macros.

  • Flexiv Isaac Sim workspace: physics.usda supplies gains/effort, and physx.usda supplies armature, friction and root iteration counts.

  • Archive SHA256: 850c9531a19d103b15c9609f60a6d594dbde602032c8fbb34b73c83fc4ecabf3.
