Built-in atomic actions

EmbodiChain ships thirteen built-in action implementations with stable skill IDs; AtomicActionEngine creates and registers a fresh instance of every built-in by default. Applications select them by stable skill ID rather than registering routine instances themselves. Place additionally accepts an AssembleGoal, so assembly reuses the same release primitive instead of introducing another skill ID.

All built-ins implement plan(request, context) -> ActionPlan, where request is the engine-resolved snapshot of an invocation revision. Constructors accept only optional typed default *Options; the owning AtomicActionEngine supplies the shared motion generator, trajectory builder, and control-part command profiles when it binds the built-in catalog. Generic motion and recovery choices belong to the invocation, and per-call primitive behavior belongs to skill_options.

Registration only installs an implementation. Whether a built-in is executable for a particular call still depends on its SkillBindingContract, the selected resource endpoints, semantic command profiles, and task-state preconditions. Action Agent adapters must also honor agent_visible and filter by embodiment capability.

Note

The current manipulation primitives consume semantic open and grasp commands through the control-part command abstraction. The shipped command implementation is JointPositionCommand. A dexterous hand may register calibrated joint-position commands immediately; non-position hand policies or multi-stage in-hand manipulation require additional command types and segments.

Visual catalog

The animations below are the focused simulator demos under scripts/tutorials/atomic_action/.

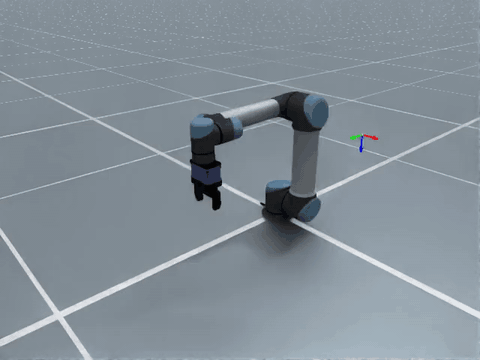

MoveEndEffector

move_end_effector · free-space EEF pose motion

MoveEndEffector

MoveJoints

move_joints · explicit or named joint-space motion

MoveJoints

PickUp

pick_up · approach, close, and lift

PickUp

AxisAlign

axis_align · grasp, lift, and align an object-local axis

AxisAlign

MoveHeldObject

move_held_object · object-centric transport

MoveHeldObject

Pour

pour · rotate an already-held object about its local internal axis

Pour

PushObject

push_object · contact and translate a free rigid object on its support plane

PushObject

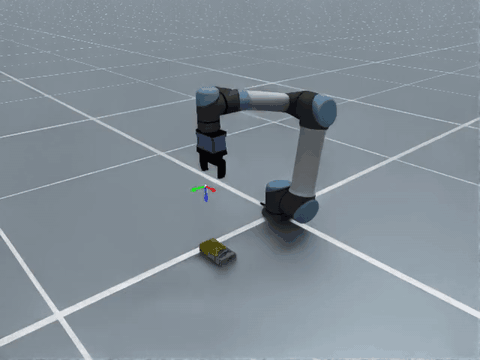

Place

place · approach, release, and retract

Place

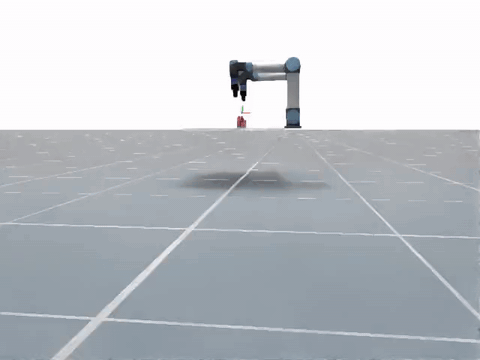

Assembly through Place

place + AssembleGoal · base-relative placement

Assembly through Place

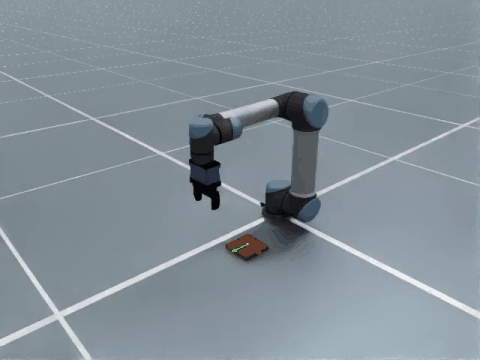

Press

press · close, approach, press, and retract

Press

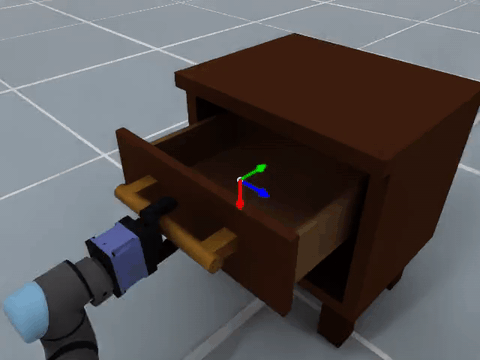

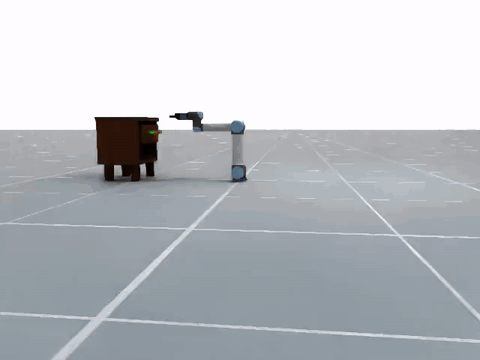

Slide

slide · grasped translation along a constrained axis

Slide

OpenDoor

open_door · sampled handle grasp and parent-hinge rotation

OpenDoor

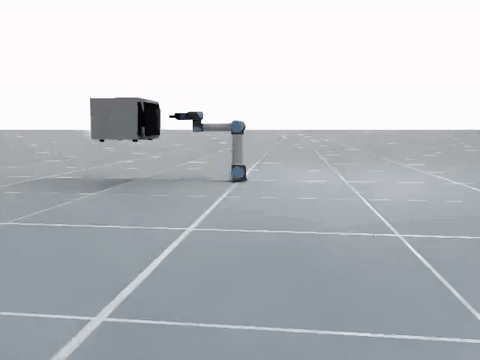

Twist

twist · grasped rotation about a configured axis

Twist

CoordinatedPickment

coordinated_pickment · dual-arm shared-object pick

CoordinatedPickment

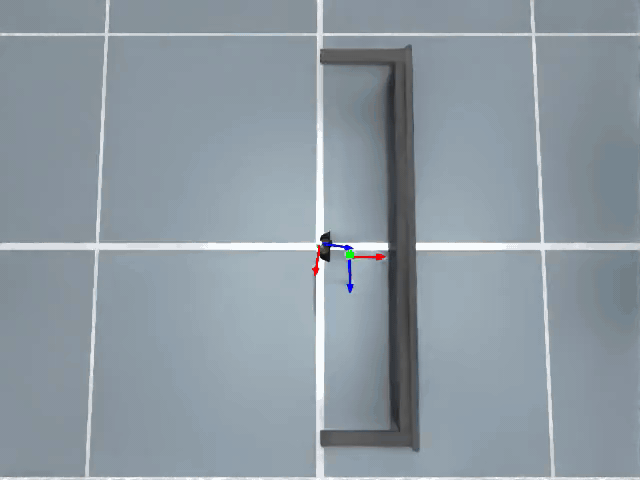

CoordinatedPlacement

coordinated_placement · align two held objects

CoordinatedPlacement

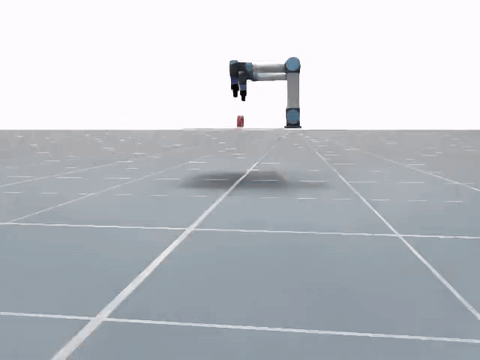

HandOver

hand_over · pick, transfer, place, and release with two arms

HandOver

Capability matrix

Skill ID	Accepted goal	Required endpoints	Required profile commands	Required task state	Expected task effect
move_end_effector	EndEffectorPoseGoal	primary.motion	none	none	none
move_joints	JointPositionGoal	primary.motion	named target only: command matching target on primary.motion	none	none
pick_up	GraspGoal	primary.motion, primary.grasp	primary.grasp: open, grasp	semantic object/entity	attach object to the primary.motion target
axis_align	AxisAlignGoal	primary.motion, primary.grasp	primary.grasp: open, grasp	unheld object with AxisAlignAffordance	open-loop pick and align while retaining the grasp
move_held_object	HeldObjectPoseGoal	primary.motion, primary.grasp	primary.grasp: grasp	object held exclusively by the primary.motion target	preserve attachment
pour	PourGoal	primary.motion, primary.grasp	primary.grasp: grasp	exclusively held object with AxisAlignAffordance	preserve attachment; open-loop rotate and return
push_object	PushObjectGoal	primary.motion, primary.grasp	primary.grasp: grasp	free rigid object plus target support pose	open-loop planar push; application validates the measured landing pose
place	PlaceGoal, AssembleGoal	primary.motion, primary.grasp	primary.grasp: open, grasp	any active attachment must be exclusive to primary.motion; AssembleGoal requires one	detach object
press	PressGoal	primary.motion, primary.grasp	primary.grasp: grasp	PressAffordance + target pose	open-loop motion; application verifies contact/actuation
slide	SlideGoal	primary.motion, primary.grasp	primary.grasp: open, grasp	SlideAffordance + link pose	open-loop motion; application verifies joint travel/grasp
open_door	OpenDoorGoal	primary.motion, primary.grasp	primary.grasp: open, grasp	OpenDoorAffordance + handle-link pose + live hinge qpos	open-loop motion; application verifies hinge travel/grasp
twist	TwistGoal	primary.motion, primary.grasp	primary.grasp: open, grasp	TwistAffordance + target pose	open-loop motion; application verifies joint travel/grasp
coordinated_pickment	CoordinatedPickGoal	left.motion, left.grasp, right.motion, right.grasp	both grasp endpoints: open, grasp	semantic object/entity	attach the shared object to both motion targets
coordinated_placement	CoordinatedPlacementGoal	placing.motion, placing.grasp, support.motion, support.grasp	placing.grasp: open, grasp; support.grasp: grasp	two distinct objects, each held exclusively by its motion target	optionally detach placing object; preserve support attachment
hand_over	HandOverGoal	source.motion, source.grasp, destination.motion, destination.grasp	both grasp endpoints: open, grasp	both candidate motion targets unoccupied; unheld object with AntipodalAffordance	open-loop pick, transfer, place, and release

Participant slot meanings

Slots are action-local semantic participants declared by SkillBindingContract. Each slot contains endpoint requirements such as motion and grasp; the profile binder matches their capabilities and typed commands to a robot resource, then adapters produce the generic EndpointBinding values owned by ActionBinding.

Slot	Used by	Meaning
primary	Single-participant skills	Principal participant for this invocation; it has no inherent left/right or default-robot meaning
source, destination	hand_over	Two candidate participants; the action assigns the nearer one to pickup and the other one to receive
left, right	coordinated_pickment	Participants on whose sides the affordance samples left/right grasps
placing	coordinated_placement	Participant that aligns and optionally releases the placing object
support	coordinated_placement	Participant that keeps holding and positioning the support object

Each endpoint requirement declares an open capability set and optional typed semantic commands. Intra-slot and inter-slot disjointness constraints express physical compatibility without global arm/tool categories. The built-in control-part adapter resolves current joint-backed endpoints through Robot.control_parts; custom adapters may instead return mobile, whole-body, or other runtime targets.

MoveJoints is intentionally agent_visible=False: it is useful for home, recovery, calibration, and scripted postures, but is not exposed to an Action Agent by default.

Shared goal and configuration rules

Pose values and dynamic references

Pose-valued fields use PoseGoalValue, which accepts either an explicit tensor or a late-bound scene reference:

fixed = EndEffectorPoseGoal(xpos=target_pose)
tracked = EndEffectorPoseGoal(
    xpos=SceneEntityPose("tray", relative_pose=tray_to_tcp)
)

Explicit pose tensors use (4, 4) or (B, 4, 4). Waypoint-capable fields in EndEffectorPoseGoal and PlaceGoal also accept (B, N, 4, 4). SceneEntityPose resolves to the latest (B, 4, 4) pose from each SceneSnapshot, checks optional perception confidence, and registers that entity as a recovery dependency.

Skill / field	SceneEntityPose accepted	Automatic scene-motion replan
MoveEndEffector.xpos	yes	yes
MoveJoints.target	no	no
MoveHeldObject.object_target_pose	yes	yes
PushObject.target_pose	yes	yes; the object and target are monitored through approach only
Place.xpos	yes	yes
CoordinatedPickGoal.object_target_pose / object_initial_pose	yes	yes
CoordinatedPlacementGoal placing/support poses	yes	yes
PickUp.grasp_xpos	yes	yes; monitored through approach only
PickUp ObjectSemantics.entity_id grounding	implicit snapshot reference	yes; monitored through approach only
AxisAlign.grasp_xpos	yes	yes
AxisAlign ObjectSemantics.entity_id grounding	implicit snapshot reference	yes; always consumed for the object pose
OpenDoorGoal.target_pose	yes	yes; monitored through reach only
HandOverGoal.target_pose	yes	yes
HandOver ObjectSemantics.entity_id grounding	implicit snapshot reference	yes; always consumed for the initial object pose
Coordinated pickup implicit initial pose via ObjectSemantics.entity_id	implicit snapshot reference	yes; only when object_initial_pose is omitted
AssembleGoal.base_pose	yes	yes
Deprecated ObjectSemantics.entity / AssembleAffordance.base_object_entity fallback	no	no

Object identity and grounding

ObjectSemantics.entity_id is the canonical scene-snapshot key. It must be a non-empty string when set. An explicit ID is strict: object grounding reads only PlanningContext.scene.entities[entity_id], and a missing entry is an error. It never falls back to ObjectSemantics.entity after an explicit lookup fails.

The live entity field remains a deprecated direct-core compatibility path only when entity_id is absent. That read emits DeprecationWarning and cannot create a scene-motion dependency. collect_scene_dependencies() intentionally does not recurse into ObjectSemantics; each primitive declares a semantic ID only when its planner actually consumes that object’s snapshot pose.

Attachment identity is not based on label. The core resolves an explicit entity_id only against another explicit ID. If either compared side has one, both sides must have the same explicit value; an equal legacy entity.uid does not match it. When both explicit IDs are absent, two non-empty legacy UIDs may match. Only when neither side has either ID form may comparison fall back to the same semantic object or live entity handle. Future SceneRegistry integration will own arbitrary alias normalization; this core bridge does not.

ObjectSemantics is shallow-frozen. Its top-level fields, including entity_id, cannot be rebound after construction; create a new semantics value to change identity. Nested affordance and metadata objects remain mutable but do not participate in identity.

Parameter ownership

Use this rule when configuring a built-in or adding a new one:

• the goal carries only the requested outcome;

• the skill’s binding contract declares participant slots, endpoint capabilities, required typed commands, and physical disjointness;

• the engine-owned binding carries adapter-resolved EndpointBinding snapshots and immutable runtime targets selected for this call;

• typed skill options carry segment-specific behavior that may vary by invocation; an action may provide defaults;

• the engine’s control-part profiles carry embodiment-specific semantic commands such as open, grasp, and named postures;

• MotionPolicy carries sample count, motion strategy, collision choice, and typed planner options;

• planner-backed segments preserve explicit planner timing, while action-owned interpolation reads the environment cadence from PlanningContext.control_dt;

• missing planner or action timing is an error; the engine has no fallback control period;

• RecoveryPolicy carries all replan/retry thresholds and budgets.

All built-ins resolve their motion and grasp endpoints exclusively from the generic ActionBinding. The built-in control-part adapter resolves joint IDs and checks each joint-position command against its DoF. Invocation-level ActionControlOverrides may replace a command by (slot, endpoint) for one explicit revision.

Planning and effect semantics

Every action returns a per-environment plan_success mask and an ActionPlan.commands sequence of RuntimeCommandFrame values. Current joint-planned built-ins also retain ActionPlan.joint_trajectory for joint feedback, inspection, and static projection. plan_success=True means planning succeeded; it does not prove contact or object transfer. Actions that change attachment state declare a StateDelta. Offline compile() projects it hypothetically; closed-loop execution commits it only after external effect verification.

MoveEndEffector

Plans a free-space motion for the bound primary.motion endpoint to reach one EEF pose or an ordered set of pose waypoints.

Contract	Value
Skill ID	move_end_effector
Goal	EndEffectorPoseGoal(xpos=...)
Binding contract	primary.motion with Cartesian-pose capability
Motion	EEF planning from observed arm qpos; output expanded to full robot DoF
Completion	EEF_GOAL_REACHED
Effect	none
Skill options	none; reusable motion choices are in MotionPolicy

Use an explicit pose for a fixed target, SceneEntityPose for a tracked target, or (B, N, 4, 4) for intermediate waypoints. The action does not command an end effector/hand resource.

Example: scripts/tutorials/atomic_action/move_end_effector.py

MoveJoints

Plans directly in joint space. This is appropriate for known safe postures, homing, scripted recovery, or motions whose desired outcome is a qpos rather than an EEF pose.

Contract	Value
Skill ID	move_joints
Goal	JointPositionGoal(target=...)
Binding contract	primary.motion with joint-position capability
Motion	joint planning/interpolation from observed qpos; supports joint waypoints
Completion	JOINT_GOAL_REACHED
Effect	none
Agent visibility	hidden by default (agent_visible=False)

target accepts an explicit qpos tensor with shape (control_dof,), (B, control_dof), or (B, N, control_dof), or a non-empty string resolved from the bound primary.motion endpoint’s command profile. Named poses remain embodiment knowledge without becoming separate goal types:

engine = AtomicActionEngine(
    motion_generator,
    control_profiles={
        "left_arm": ControlPartCommandProfile.joint_positions(home=home_qpos),
    },
)

explicit_goal = JointPositionGoal(target=home_qpos)
named_goal = JointPositionGoal(target="home")

Example: scripts/tutorials/atomic_action/move_joints.py

PickUp

Plans approach -> close hand -> lift and declares the object attached to the bound motion target.

Contract	Value
Skill ID	pick_up
Goal	GraspGoal(semantics=..., grasp_xpos=None)
Binding contract	primary.motion plus disjoint primary.grasp
Precondition	ObjectSemantics.entity_id resolves in the planning snapshot; the deprecated live entity fallback remains temporarily; an AntipodalAffordance is required when neither an explicit grasp pose nor fixed_object_to_eef is supplied
Effect	write HeldObjectState for the bound motion target
Verification	the attachment effect must be verified during closed-loop execution

grasp_xpos may be (4, 4), (B, 4, 4), or a SceneEntityPose. A scene reference resolves the latest grasp pose and registers its entity as a recovery dependency, so material target motion invalidates and replans an executing PickUp while its approach segment is active. Once approach has been dispatched, dependency monitoring stops: contact-, close-, and lift-induced object motion must not be misclassified as an external target update. Tracking and collision-world checks remain active independently. When grasp_xpos is omitted and fixed_object_to_eef is configured, the action composes that object-relative calibration directly with the observed object pose. This path bypasses affordance sampling, rotate_upright, and grasp_frame_to_eef. Without the fixed calibration, the action samples valid affordance grasps and evaluates reachability. Both paths store the selected object_to_eef transform in the expected held-object state so later object-centric skills can reuse it.

Set ObjectSemantics.entity_id to the same stable ID used by the scene snapshot. PickUp resolves that object pose once per planning attempt, uses the same tensor for grasp sampling, upright adjustment, and object_to_eef, and automatically records the ID as a scene dependency. An explicit ID never falls back to a live simulation entity when the snapshot entry is missing.

PickUp requires typed open and grasp commands on primary.grasp. Important PickUpOptions fields:

Field	Purpose
pre_grasp_distance, approach_direction	Pre-grasp offset and world-frame approach direction
lift_height, hand_interp_steps	Lift distance and close-segment discretization
grasp_settle_steps	Closed-hand hold frames before lifting
grasp_frame_to_eef	Fixed SE(3) calibration from canonical grasp frames to the robot TCP
fixed_object_to_eef	Optional task/robot-calibrated SE(3) grasp that bypasses affordance sampling when the goal has no explicit grasp
pick_object_part	Affordance region: currently center, top, or bottom
approach_alignment_max_angle	Optional TCP approach-alignment filter
downstream_object_target_poses	Optional future reachability constraints used in grasp selection
obj_upright_direction, rotate_upright	Optional orientation-selection behavior

ObjectSemantics.entity without an ID is a deprecated compatibility path. Its live pose does not create an automatic scene dependency.

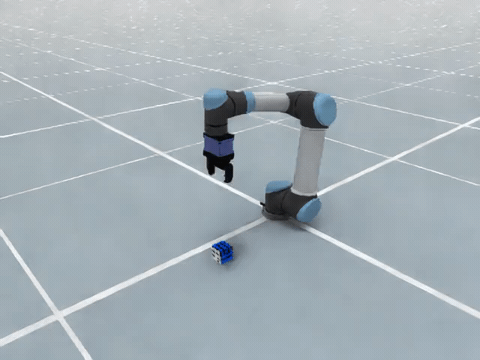

Example: scripts/tutorials/atomic_action/pickup.py currently exercises the deprecated entity-only fallback. For canonical snapshot grounding and moving target recovery, see scripts/tutorials/atomic_action/moving_target_recovery.py.

AxisAlign

Executes approach -> reach -> close -> lift -> align while grouping arm motion into two planner calls: the open-gripper approach phase contains the pre-grasp and grasp targets, and the closed-gripper manipulate phase contains the lift and alignment targets. The close segment is local hand interpolation and does not call the motion generator. Only the final aligned pose is sent to the planner; the alignment sample budget controls trajectory resolution without expanding the rotation into one CuRobo plan_pose call per intermediate orientation. The object’s AxisAlignAffordance.internal_axis is expressed in the object-local frame, while AxisAlignOptions.target_axis is expressed in the world frame. The final alignment target applies the shortest rotation about the lifted object’s origin so that aligned_object_rotation @ internal_axis == normalized_target_axis, then derives every end-effector keyframe through the fixed grasp transform.

Contract	Value
Skill ID	axis_align
Goal	AxisAlignGoal(semantics=..., grasp_xpos=None)
Binding	manipulator + end effector role primary
Precondition	an AxisAlignAffordance; the object pose resolves from ObjectSemantics.entity_id or the deprecated live entity fallback
Motion	approach, grasp, lift, and rotate in place while retaining the grasp
Effect	explicitly open-loop; no final object-pose success is claimed

An explicit grasp_xpos accepts the same pose forms as GraspGoal; omitting it prefers valid antipodal grasps whose TCP y-axis is perpendicular to the object rotation axis, using grasp cost as the tie-breaker. When a currently horizontal object axis is aligned to world-up, the initial grasp orientation is pre-rotated 45 degrees opposite the alignment rotation. This reduces the arm’s table-side sweep during upright manipulation. AxisAlignOptions extends PickUpOptions with target_axis. Shared and per-environment target axes use shapes (3,) and (B, 3) respectively. Zero or non-finite axes are rejected, and exactly opposite axes use a deterministic 180-degree rotation rather than an unstable cross-product direction.

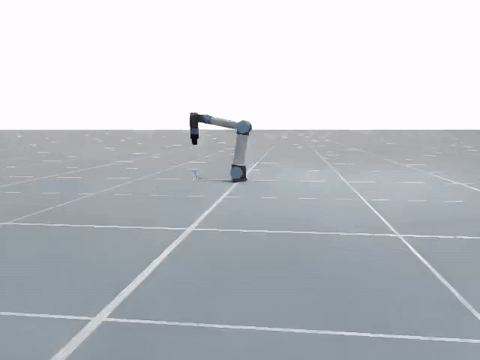

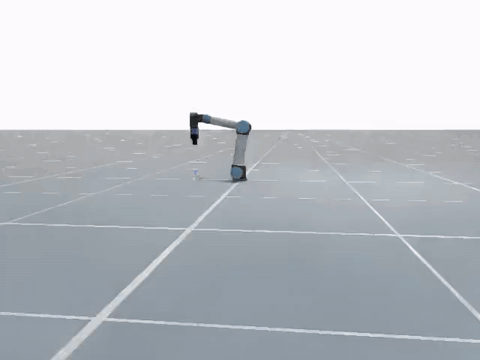

Example: scripts/tutorials/atomic_action/axis_align.py provides --alignment upright (align object-local X to world Z) and --alignment horizontal_align (align object-local X to world Y).

MoveHeldObject

Moves an already attached object to an object-frame target while keeping the hand closed. The caller specifies the desired object pose, not an EEF pose; the action derives target_object_pose @ object_to_eef from verified task state and sends that exact EEF target to the motion planner. It does not replace the requested orientation with an implicit transport orientation. A caller that needs upright or tilted transport must encode that orientation in the object target itself.

After a successfully accepted Task Program call, the execution layer reconciles an active held relation from the terminal object observation and forward kinematics when both are available. Consequently, later object-space calls use the measured attachment instead of indefinitely projecting the originally selected grasp.

Contract	Value
Skill ID	move_held_object
Goal	HeldObjectPoseGoal(object_target_pose=...)
Binding contract	primary.motion plus disjoint primary.grasp
Precondition	a HeldObjectState exists exclusively for the bound motion target, normally from PickUp
Motion	single object-centric transport segment with closed-hand qpos
Effect	none; the existing attachment is preserved
Dynamic target	explicit pose or SceneEntityPose

The bound primary.grasp endpoint must provide grasp. The participant’s motion and grasp endpoints are selected through ActionBinding; generic timing is explicit on the planner result or planning context, while trajectory sampling remains in MotionPolicy. In a vectorized batch, rows where another manipulator holds the same semantic object or live entity are marked unsuccessful and held in place.

Example: scripts/tutorials/atomic_action/move_held_object.py

Pour

Rotates the object already held by the bound primary manipulator. PourGoal contains no object pose because the action consumes the verified HeldObjectState created by PickUp. PourOptions contains only the signed rotate_angle in radians.

The held object’s semantics must use AxisAlignAffordance. The action obtains the current EEF pose from FK at the observed starting arm qpos, reconstructs the current object pose using eef_pose @ inverse(object_to_eef), transforms the affordance’s object-local internal_axis into world space, and applies the requested rotation while keeping the object origin fixed. The resulting EEF target is target_object_pose @ object_to_eef. A second target then returns to the EEF pose observed by FK, thereby reversing the rotation by the same angle. Both targets are submitted in one motion-generation call so a collision-aware planner can chain the outbound and return legs.

Contract	Value
Skill ID	pour
Goal	PourGoal()
Options	PourOptions(rotate_angle=...)
Binding	manipulator + end effector role primary
Precondition	an exclusive HeldObjectState whose semantics use AxisAlignAffordance
Motion	rotate by rotate_angle, then reverse by the same angle, with the hand held at grasp
Effect	none; the existing attachment is preserved

Example: scripts/tutorials/atomic_action/pour.py compiles a horizontal PickUp followed by Pour.

PushObject

Pushes a free rigid object toward an object-space target on the target pose’s support plane. PushObjectGoal owns the object’s semantic identity and an explicit pose or late-bound SceneEntityPose. The action closes the configured end effector, approaches a calibrated contact point from above, makes contact, translates along the measured planar object-to-target direction, and retracts.

The primitive intentionally declares no symbolic placement effect. Contact and sliding are open-loop physics interactions, so a task must use a measured segment validator such as object_near_target before accepting a demonstration. Object and target scene dependencies are monitored only through approach; motion caused by the contact and push phases is therefore not misclassified as an external dynamic-goal update.

Contract	Value
Skill ID	push_object
Goal	PushObjectGoal(semantics=..., target_pose=...)
Binding	manipulator + end effector role primary
Precondition	a free rigid object and a target pose whose local Z axis is the support normal
Motion	close, approach, contact, planar push, retract
Effect	none; verify the measured object pose at the task boundary

PushObjectOptions owns contact distance, overshoot, approach/retract heights, the object-local contact point, and an optional support-frame planar offset. The support-frame override keeps corrective pushes on the same side even when a thin object flips or yaws after first contact. completion_tolerance makes a later corrective invocation return a hold trajectory when the latest measured pose is already close enough. PushObjectToolCalibration can override the contact transform and clearance for a bound control part, which keeps asymmetric left/right tool geometry in the robot profile rather than in task control code.

Place

Plans approach/descend -> open hand -> retract. A multi-waypoint PlaceGoal visits all supplied release waypoints in order and opens at the last one.

Contract	Value
Skill ID	place
Goal	PlaceGoal(xpos=..., tcp_symmetry="none")
Binding contract	primary.motion plus disjoint primary.grasp
State	consumes the bound motion target’s attachment when present and exclusive
Effect	detach the object from the bound motion target
Verification	release must be verified during closed-loop execution
Dynamic target	explicit pose/waypoints or SceneEntityPose

Set tcp_symmetry="z_roll_180" only if TCP x/y can be flipped while TCP z and translation remain physically equivalent. The action selects the closer orientation variant from the observed starting state and uses it consistently across all waypoints. An ordinary PlaceGoal may still open an unattached gripper, but it will not release one side of a shared multi-manipulator object.

The bound primary.grasp endpoint must provide open and grasp. Important PlaceOptions fields:

Field	Purpose
lift_height	Approach and retract height
hand_interp_steps	Open-segment discretization
release_settle_steps	Open-hand hold frames before retracting
max_approach_retract_z	Optional world-Z ceiling for approach/retract poses
cartesian_waypoint_count	Fixed-orientation translation keyframes per segment
preserve_current_object_orientation	Keep the observed object orientation while using the target translation

Example: scripts/tutorials/atomic_action/place.py

Assembly through Place

Place also accepts AssembleGoal(affordance=..., base_pose=SceneEntityPose("base")). There is no separate assembly skill: it derives the assemble-object target from the base object’s snapshot pose and reuses the normal place/release segments.

base_object_pose @ assemble_to_base_pose = assemble_object_target_pose
assemble_object_target_pose @ held.object_to_eef = release_eef_pose

The AssembleAffordance stores the relative assembly pose. A prior verified PickUp must have populated the held object’s object_to_eef transform, and that attachment must be exclusive. base_pose is resolved from each planning snapshot and automatically becomes a recovery dependency. Omitting it temporarily falls back to the affordance’s base_object_entity with a deprecation warning; that fallback is not a scene dependency. Planning declares the same detach effect as a normal place.

Example: scripts/tutorials/atomic_action/assemble.py currently exercises the legacy base_object_entity fallback and is not the canonical base_pose form. It remains a compatibility example until the registry-backed tutorial migration.

Press

Plans close hand -> approach target -> contact -> press along axis -> return to the approach pose. For an articulation link, sample_initial_articulation_geometry() builds typed target-link-local target and whole-articulation geometry. Its to_object_geometry() conversion stores the target, complete-articulation, and non-target-articulation clouds plus the nearest parent prismatic joint axis in ObjectSemantics.geometry. PressAffordance uses target_link_prismatic_joint_axis for its axis direction; only nearby non-target link surfaces select the sign. It can also derive the outer-surface press_position when it is omitted. If no non-target surface lies in the target neighborhood, direction is ambiguous and must be configured without automatic axis inference. PressGoal.target_pose is either a pose snapshot or SceneEntityPose, which resolves through the current PlanningContext.scene and participates in dynamic-goal recovery.

The contact, press, and retract segments use axis-aligned Cartesian keyframes; each output sample is grounded with IK instead of being interpolated only in joint space. The generated tool frame uses an adaptive reference axis and is a right-handed orthonormal rotation even for vertical or oblique press axes.

Contract	Value
Skill ID	press
Goal	PressGoal(semantics=..., target_pose=...)
Binding contract	primary.motion plus disjoint primary.grasp
Motion	close, approach, contact, axis-constrained press, axis-constrained retract
Effect	explicitly open-loop; no physical button/contact effect is claimed
Dynamic target	explicit pose or SceneEntityPose

PressOptions controls hand-close interpolation, approach distance, press distance, and an optional target-local press_position. An options-level position overrides the affordance’s resolved surface point. The bound primary.grasp endpoint must provide grasp; both endpoints come from the generic ActionBinding, and the action keeps the gripper closed for all arm motion segments. Applications that require force/contact confirmation must verify it externally.

Example: scripts/tutorials/atomic_action/press.py

Slide

Plans a grasped linear interaction for one articulation link. The entity-free SlideAffordance stores the link-local grasp mesh and resolves its translation_axis from initial articulation point-cloud geometry, plus optional joint name/limits. SlideGoal.target_pose supplies the link pose as a snapshot or SceneEntityPose. The positive axis direction means approach and push/close; pull/open uses its negative direction. The affordance inherits AntipodalAffordance and selects a grasp with get_best_grasp_poses(). The grasp approach direction is the resolved link-frame translation axis transformed by the current link rotation.

The Atomic Action articulation-geometry adapter samples the target link, the merged articulation surface, and the merged surface of every non-target link at ArticulationCfg.init_qpos, expressed in the target link’s initial local frame. Every non-empty surface cloud uses Open3D uniform sampling; a target-only articulation records an explicit empty non-target cloud. Sampling each merged mesh preserves triangle-area weighting instead of giving every link an equal point budget, which would over-represent tiny decorative links. To keep the target and merged clouds geometrically consistent, every non-empty link mesh must contain at least one non-degenerate triangle surface; the adapter rejects vertices-only and fully degenerate link meshes before merging. The sampler also walks the target’s parent chain and transforms the nearest prismatic joint axis into the target link’s initial local frame. The target cloud center and twice its distribution radius define a spherical neighborhood in the non-target cloud. The dot product between that neighborhood-center offset and the normalized joint axis selects its sign. Target-link samples from the complete cloud never contribute direction evidence, so independent Open3D sampling cannot randomly flip the axis when no other link is nearby. It does not quantize an oblique joint axis to a Cartesian basis direction. A missing or empty non-target neighborhood, or an axial offset that does not exceed both one percent of the target radius and four estimated standard errors, is rejected as directionally ambiguous.

Automatic resolution requires all four entries: target_link_point_cloud, articulation_point_cloud, non_target_articulation_point_cloud, and target_link_prismatic_joint_axis. With none of those inference entries, an explicit compatibility axis is preserved; missing provenance or another partial set is rejected.

With direction="pull", the sequence is approach -> reach -> close -> pull -> open. With direction="push", it is approach -> reach -> close -> push -> open -> return, where return moves the open gripper back to the original approach pose.

Contract	Value
Skill ID	slide
Goal	SlideGoal(semantics=..., target_pose=...)
Binding contract	primary.motion plus disjoint primary.grasp
Motion	pull: approach, reach, close, pull, open; push adds return to approach
Effect	explicitly open-loop; no articulation travel or grasp success is claimed

SlideOptions controls direction, hand close/open interpolation, approach distance, and translation distance. The link-frame translation axis belongs to SlideAffordance; the bound primary.grasp endpoint must provide open and grasp. Reach, pull/push, and push-return use axis-aligned Cartesian samples rather than sparse joint-space endpoints.

Example: scripts/tutorials/atomic_action/slide.py plans and replays a pull first, then replans a push from the drawer’s measured post-pull link pose.

OpenDoor

Plans approach -> reach -> close -> open -> release -> retract for a door handle. Construct OpenDoorAffordance with OpenDoorAffordance.from_articulation(articulation, link_name). Starting at the configured handle link, the factory consumes Articulation.get_parent_joint_chain(), skips only fixed intermediates, and automatically selects the hinge only when the chain has one active revolute ancestor. A prismatic ancestor, revolute latch/handle joint, or any other multi-active chain is ambiguous and requires hinge_joint_name. The selected axis and origin are converted into the handle-link frame without exposing native simulator joint-info objects to the affordance. The affordance owns the joint-coordinate opening direction: it defaults to increasing qpos, while reverse-coordinate hinges pass opening_direction=-1 to the factory. It stores only local geometry, the handle mesh, resolved joint name, limits, and opening direction; it does not retain the live articulation.

The action infers the positive-opening approach direction from the hinge axis and the hinge-to-handle radial vector, then samples a handle grasp as Slide does. OpenDoorGoal.open_fraction is an absolute semantic target: 0 maps to the affordance-owned closed legal endpoint and 1 maps to its open endpoint, including hinges whose opening direction decreases joint position. At planning time, the resolved joint name must uniquely match a live SceneSnapshot.articulation_joints observation. Each environment rotates only by target_position - observed_position; invalid observations, out-of-range targets, and targets that would move toward closing fail that row, while rows already at the target succeed with a hold trajectory.

For active rows, the opening segment interpolates handle-link poses around the resolved hinge axis and applies the initial rigid link -> EEF transform to recover the corresponding EEF poses. After release, retract follows the approach direction after it has rotated with the open door.

Contract	Value
Skill ID	open_door
Goal	OpenDoorGoal(semantics=..., target_pose=..., open_fraction=...)
Binding contract	primary.motion plus disjoint primary.grasp
Motion	approach, reach, close, hinge arc, release, rotated-direction retract
Effect	explicitly open-loop; no hinge travel or grasp success is claimed

OpenDoorOptions controls hand close/open interpolation, circular-arc keyframes, approach/retract distances, and joint-position comparison tolerance. The desired opening state belongs to OpenDoorGoal, not the planner options. The bound primary.grasp endpoint must provide open and grasp. The planner reserves at least one opening-segment sample for the segment start plus one for every configured door-arc keyframe; the full motion policy therefore needs sample_count >= 2 * hand_interp_steps + door_waypoint_count + 7.

Example: scripts/tutorials/atomic_action/open_door.py configures only the microwave’s door_handle link. Automatic traversal resolves door_hinge through the intermediate fixed joint. Its absolute --open_angle value is normalized against the resolved hinge limits and passed as the goal’s open_fraction.

Twist

Plans approach -> reach -> close -> twist -> open -> retract for an articulation link or a rigid object. The entity-free TwistAffordance stores an explicit local grasp_position, plus optional joint name/limits. For an articulation link, the same initial target-neighborhood geometry used by Slide and Press signs the normalized target_link_revolute_joint_axis to resolve twist_axis. The independent target_link_revolute_axis_origin geometry entry sets axis_origin to the nearest parent revolute joint’s initial origin, expressed in the target link’s initial local frame. Resolution walks through fixed parent joints. The sampled target-link centroid is only a neighborhood/contact reference; it is never used as the rotation origin.

Automatic axis resolution requires the revolute joint-axis entry plus the target, complete-articulation, and non-target-articulation clouds. When all four axis-inference entries are absent, the legacy twist_axis fallback is preserved; missing non-target provenance or another partial set is rejected. Axis-origin resolution is independent, so missing origin metadata does not overwrite an explicit axis_origin. If neither source supplies an origin, planning reports the missing rotation-axis point. A rigid object without articulation context may still provide explicit compatibility values. TwistGoal.target_pose supplies the grounded target pose.

The grasp frame’s z-axis follows the world-transformed twist axis; an adaptive reference completes a right-handed orthonormal frame. Twist keyframes rotate around the full 3D axis defined by axis_origin + twist_axis, not implicitly around the target link origin.

Contract	Value
Skill ID	twist
Goal	TwistGoal(semantics=..., target_pose=...)
Binding contract	primary.motion plus disjoint primary.grasp
Motion	approach, reach, close, rotate about the target-local axis, open, retract
Effect	explicitly open-loop; no articulation travel or grasp success is claimed

TwistOptions controls the pre-grasp distance, close/open interpolation, Cartesian twist keyframes, and twist angle. The pre-grasp pose is offset along the grasp pose’s negative z-axis; the target-local twist axis belongs to TwistAffordance. The bound primary.grasp endpoint must provide open and grasp.

Twist is intentionally a pure-rotation primitive. Thread pitch, coupled axial translation, and regrasping are outside its contract; an Unscrew action should model those behaviors separately.

For all four primitives, SkillDescriptor.open_loop is True. Trajectory completion therefore means commanded motion completion only. Applications that need semantic success must observe button/contact or articulation state and verify it outside the side-effect-free planner.

Example: scripts/tutorials/atomic_action/twist.py

CoordinatedPickment

Coordinates two arms around one shared object: approach both grasps -> close both hands -> lift -> move object -> hold.

Contract	Value
Skill ID	coordinated_pickment
Goal	CoordinatedPickGoal
Binding contract	disjoint left and right slots, each with disjoint motion and grasp endpoints
Precondition	an AntipodalAffordance; when object_initial_pose is omitted, ObjectSemantics.entity_id resolves in the snapshot or the deprecated no-ID live fallback is available
Goal geometry	shared-object target pose and optional initial object pose; left/right grasps are sampled from the affordance
Effect	write one HeldObjectState per bound manipulator; both entries share the same object semantics
Verification	coordinated attachment must be externally verified

The left/right grasp poses are not supplied by the caller. At planning time the action calls AntipodalAffordance.get_dual_arm_valid_grasp_poses with the approach_direction, left_to_right_arm_direction, and middle_empty_ratio options to partition the object into left/right grasp regions and select the lowest-cost grasp on each side. Each derived object_to_eef transform is stored in the corresponding projected HeldObjectState. Later object-centric skills can inspect those per-manipulator entries directly; sharing the same ObjectSemantics instance identifies the common object. Single-arm transport and release skills reject those shared rows rather than moving or detaching just one participant. The unified HandOver action starts before pickup and therefore requires both candidate arms to be unoccupied.

The object target and optional initial pose may use SceneEntityPose. Those references declare their own scene dependencies. When object_initial_pose is omitted, the action grounds the initial pose from ObjectSemantics.entity_id and declares that ID as a dependency; the deprecated no-ID entity fallback is live and therefore cannot trigger scene-motion replanning. Supplying object_initial_pose disables this implicit semantic dependency because the explicit pose value is authoritative.

Both bound grasp endpoints must provide open and grasp. Important CoordinatedPickmentOptions fields group into:

• pre_grasp_distance and lift_height;

• object_motion_keyframes, hand_interp_steps, and hold_steps;

• approach_direction, left_to_right_arm_direction, and middle_empty_ratio for affordance-based left/right grasp sampling.

The left/right motion and grasp endpoints come exclusively from the corresponding participant slots. Coordinated dual-arm planning with strategy="motion_gen" is not supported by the cuRobo backend; use the supported IK/interpolation path for this primitive.

Example: scripts/tutorials/atomic_action/coordinated_pickment.py

CoordinatedPlacement

Moves a support object and a placing object together: align both objects -> hold -> optionally release the placing hand -> retreat the placing arm.

Contract	Value
Skill ID	coordinated_placement
Goal	CoordinatedPlacementGoal
Binding contract	disjoint placing and support slots, each with disjoint motion and grasp endpoints
Precondition	each bound motion target exclusively holds a different object
Goal geometry	placing/support object target poses, optional height offsets, optional release override
Effect	preserve support attachment; remove or preserve placing attachment according to release

Both object targets may use SceneEntityPose, so either can participate in dynamic-goal invalidation. Goal-level height/release values override CoordinatedPlacementOptions for that invocation. Two entries that identify the same semantic object or live entity are a shared grasp, not a placing and support pair, and their environment rows are rejected.

The placing.grasp endpoint must provide open and grasp; support.grasp must provide grasp. Important CoordinatedPlacementOptions fields group into:

• default release, placing/support height offsets, and lift_height;

• hand_interp_steps, hold_steps, and retreat_steps.

The placing/support motion and grasp endpoints come exclusively from the corresponding participant slots. The same cuRobo restriction as coordinated pickment applies to dual-arm strategy="motion_gen" planning.

Example: scripts/tutorials/atomic_action/coordinated_placement.py

HandOver

Runs the full two-arm manipulation as one action: choose the nearer arm -> grasp the nearer end of the object’s longest axis -> lift and move to the computed middle point -> the other arm grasps the opposite end -> transfer the grasp -> place and release.

Contract	Value
Skill ID	hand_over
Goal	HandOverGoal(semantics=..., target_pose=...)
Binding contract	disjoint source and destination slots, each with disjoint motion and grasp endpoints
Precondition	both candidate arms start unoccupied; object semantics use AntipodalAffordance
Effect	none; both grippers are open after placing the object
Verification	open-loop physical pickup, transfer, placement, and release

Both grasp endpoints must provide open and grasp. The two binding slots are candidate motion/grasp pairs rather than a caller-selected transfer direction. For every environment, the action compares the observed object position with both configured solver root-link positions. The nearer arm picks up the object; the other arm receives it.

To keep both grasps spatially separated, HandOver deterministically samples at most 1000 points from the object’s triangle-mesh surface, transforms them by the current object pose, and uses SVD to find the widest distribution direction (obj_longest_axis). The handover arm selects the projected end nearest its current TCP, and the receiving arm selects the opposite end. Grasp generation receives this world-frame axis plus is_positive_part; a None axis retains the ordinary unpartitioned center behavior for other callers.

When the longest axis is within 45 degrees of world Z, HandOver uses vertical mode: each approach’s horizontal projection points from the acting arm’s current TCP toward the corresponding object position and is tilted downward by 45 degrees. Otherwise it uses horizontal mode and both approaches are world-Z downward. Pickup uses the observed object position, while receiving uses the predicted middle object position because that pose is not observed again during open-loop planning.

After pickup, the action lifts in world Z and computes the middle object pose by finding the root-link separation’s largest-magnitude coordinate and setting only that object coordinate to the two roots’ midpoint. From the first grasp through middle transfer, and from the receiving grasp through final lowering, EEF waypoint rotations remain fixed; only translations change. The final object translation comes from HandOverGoal.target_pose, while its execution orientation stays consistent with the handover grasp. HandOverOptions owns only the approach/lift distances and gripper interpolation count. The first placement waypoint changes only horizontal coordinates and preserves the handover height exactly; the second waypoint lowers to the final target.

Planning failures are reported with semantic waypoint names and affected environment IDs. For a failed motion phase, HandOver diagnoses each target with IK; if all target waypoints are reachable, the report identifies the interval between them as a likely path- or collision-planning failure.

As with the other coordinated primitive, cuRobo does not currently support its dual-arm strategy="motion_gen" path.

Example: scripts/tutorials/atomic_action/hand_over.py

Running the demos

Every focused script is interactive by default. Add --auto_play to skip keyboard prompts and combine it with --headless --device cpu for a headless run that records video under outputs/videos:

python scripts/tutorials/atomic_action/move_end_effector.py --headless --auto_play --device cpu
python scripts/tutorials/atomic_action/pickup.py --headless --auto_play --device cpu
python scripts/tutorials/atomic_action/hand_over.py --headless --auto_play --device cpu

See Atomic actions for engine setup, static compilation, closed-loop execution, effect verification, and custom-action guidance.
